| Electric system: Electric safety circuit protection, CE certification |
| Control system: Multi-axis servo motion controller, full servo motor control |
| HMI: LCD Color touch screen display interface |
| Unwinding device: Independent automatic tension control system |
| Auto splicing: Nonwovens and packing film non-stop auto splicing with spliced joint automatic rejection system. Two sets of label applicator which can be operated by auto switch mode or synchronous mode |

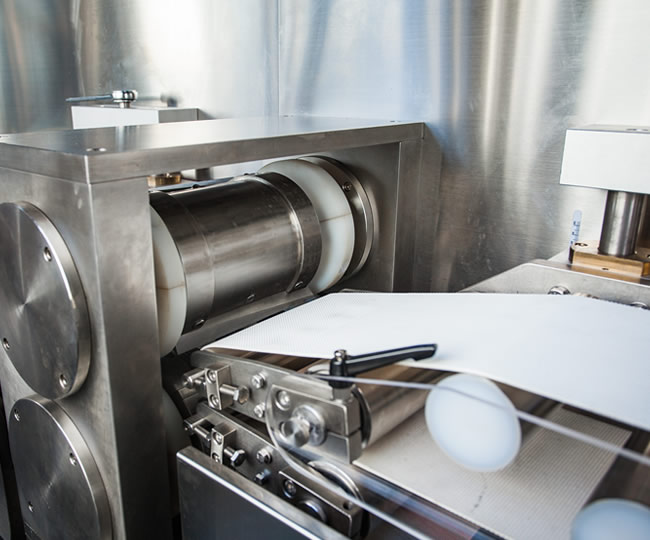

| Wipes cutting module: Rotary cutting roller |

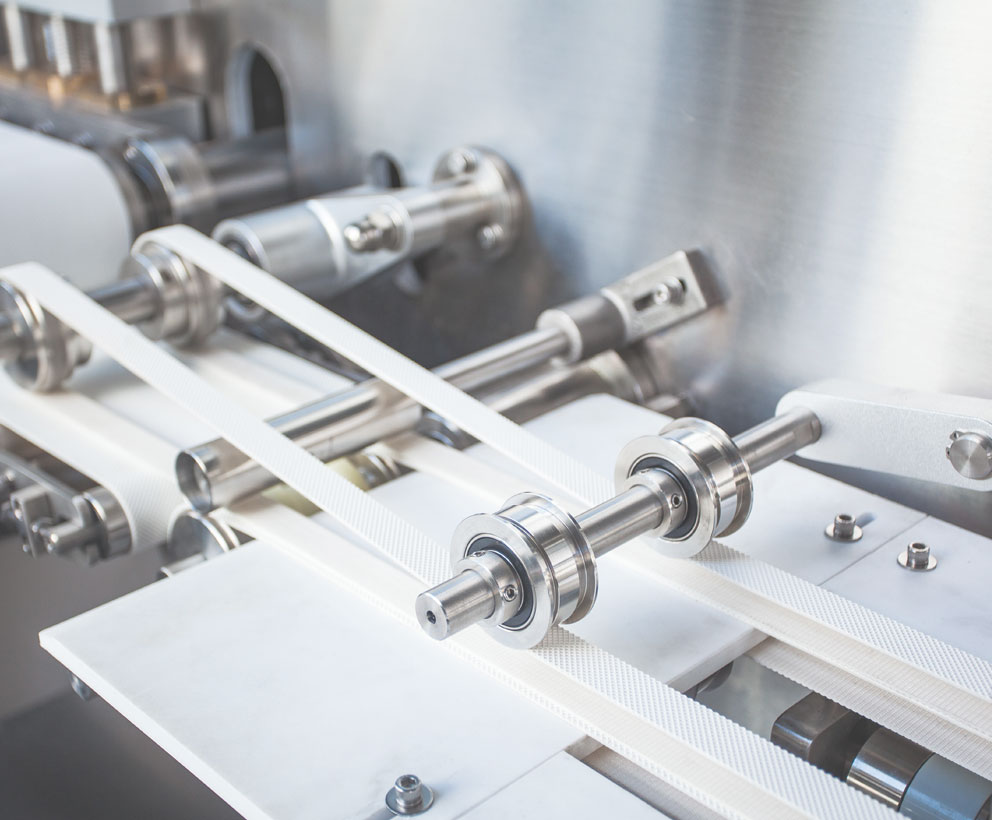

| Cleaning and disinfection: Hygiene grade design, easy to disassemble conveyor belts which contact with liquid are designed accord with hygiene standard |
| Wetting flow control: Electronic flowmeter control wetting flow, reduce recycle liquid, wetting range 2.5-4.5 times |
| Liquid level control: Electric liquid level sensor control liquid level automatically |
| Pipeline disinfection: Pipeline and pump use lowest point drain out design and 3D design standard, no residue and free of dead corner, apply to pasteurization or CIP (Clean In Place) |
| Spectral decomposition detection: Nowoven, label, packing film, wetting weight, packaging on-line monitoring |
| End seal protection function: To prevent the end seal device cut onto wet wipes |
| Automatic web guider (optional devices): Automatic web guiders for jumbo roll to ensure high speed stable running and folding accuracy |
| Quality control (optional devices): Nonwoven stain detection, Metal detection, Checkweigher, Date code & Die cutting & Labelling visual inspection, and automatic sorting reject |
| SCADA application program (optional devices): (Supervisory Control And Data Acquisition) equipment operating and detection data output port |
| Applied nonwoven material: Spunlace or flushable materials and else nonwovens |
| Nonwoven specification: Maximum W1050mm, Φ1200mm, coreφ76.2mm(3”), online slitting |
| Nonwoven quantity: 8 rolls of nonwoven, non-stop auto splicing, 4 rolls running and 4 rolls standby |
| Applied packing film: PET/PE, BOPP/PE, PET/AL/PE laminated film and other heat-seal materials |
| Packing film specification: Maximum W420mm, Φ360mm, coreφ76.2mm(3”) |
| Packing film quantity: 2 rolls of packing film, non-stop auto splicing |
| Applied sticking label: Transparent sticker & non-transparent sticker |
| Sticking label specification: Maximum W100mm, Φ400mm, coreφ76.2mm(3”), 2 rolls of lable, non-stop switch |
| Fold type: Not pop up extraction or Pop up extraction |

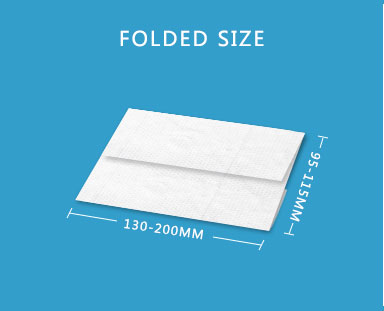

| Folded size: L130-200mm, W95-115mm (otherwise indicated) |

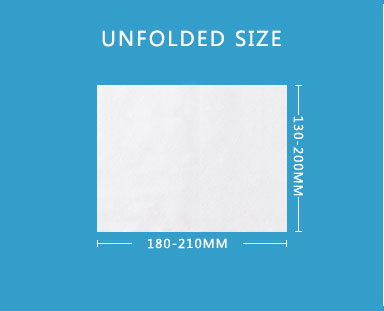

| Unfolded size: L130-200mm, W180-210mm (otherwise indicated) |

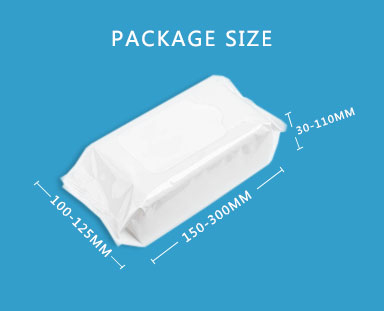

| Package size: L150-300mm, W100-125mm, H30-100mm (otherwise indicated) |
| Production speed: 80 ppm or 400 cpm or 8000 wipes/min, whichever comes first |
| External dimension: L20900mm, W4590mm, H2350mm |
| Rated power: AC380V (Customizable), 50/60Hz, three-phase five-wire, 33KW |
| Compressed air: 0.6-0.8Mpa, 130L/min |
| Net weight: About 20000KGS |
| Other optional devices: Automatic web guider, Nonwoven stain detection system, Metal detector & Checkweigher & Reject, Date code printer, Package visual inspection and reject, SCADA system |
