| High quality feeder with 4 suckers for lifting paper and 4 suckers for forwarding paper ensure stable and fast feeding paper. The height and angle of suckers are easily adjustable to keep sheets absolutely straight. |
| Mechanical double-sheet detector, sheet-retarding device, adjustable air blower ensure sheets transfer to the belt table steadily and precisely. |
| Vacuum pump is from German Becker. |
| Pile adjustment in transverse direction is controlled by motor for accurate sheet feeding. |
| Pre-load system, non-stop feeding, high pile (Max. pile height is up to 1600mm). |
| Perfect piles can be formed on pallets which run on rails for pre-load system. This makes a significant contribution to smooth production and let operator move the prepared pile to feeder accurately and conveniently. |
| Single position engagement pneumatic operated mechanical clutch insures the first sheet after every re-start of machine is always fed to front lays for easy, time-saving and material-saving make-ready. |

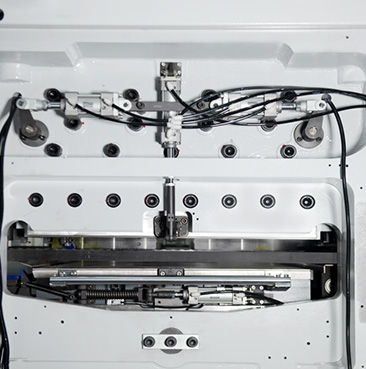

| The side lays can be switched directly between pull and push mode on both sides of the machine simply by turning a bolt without having to add or remove parts. This provides the flexibility for processing a wide range of material: irrespective of whether the register marks are to the left or right of the sheet. |
| Side and front lays are with precision optical sensors, which can detect dark color and plastic sheet. The sensitivity is adjustable. |
| Optical sensors with automatic stop system on feeding table enable you to optimize system monitoring- for comprehensive quality control over the entire sheet width and paper jam. |
| Operation panel for feeding part is easier to control the feeding process with LED displayer. |
| Separate drive controls for main pile and auxiliary pile |
| PLC and electronic cam for timing control |
| Anti-obstacle device can avoid the machine damage. |
| Swiss Rapplon convey belt for feeder and the speed is adjustable |
