Equipment Features

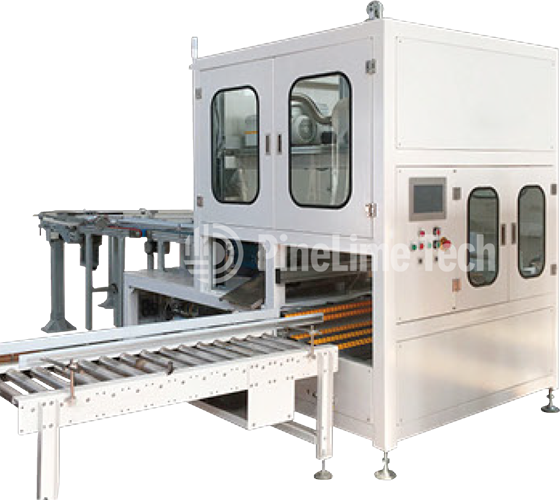

Full-automatic case packer can realize high speed picking and putting motion. It will complete a full-automatic production line and no need labor case packing. Automatic case opener, case packer, case sealer. Intelligent rejection function. Intelligent automatic diverter and counting system. On line case sealing detection function.

Electrical safety circuit design and comply with CE safety standard

Multi-axis motion controller, full servo control

Horizontal packing or twisting side-up packing, 2-12pkgs per layer, can be rotated 90 degrees

HMI setting carton size and automatic calibration

Automatically reject defective products

Equipment configured operation information output interface, can be connected to SCADA system

Technical Parameters

Wet wipes conveyor: Connect the packaging machine or the capping machine

Accumulation conveyor: Accumulate 3-5 empty cartons

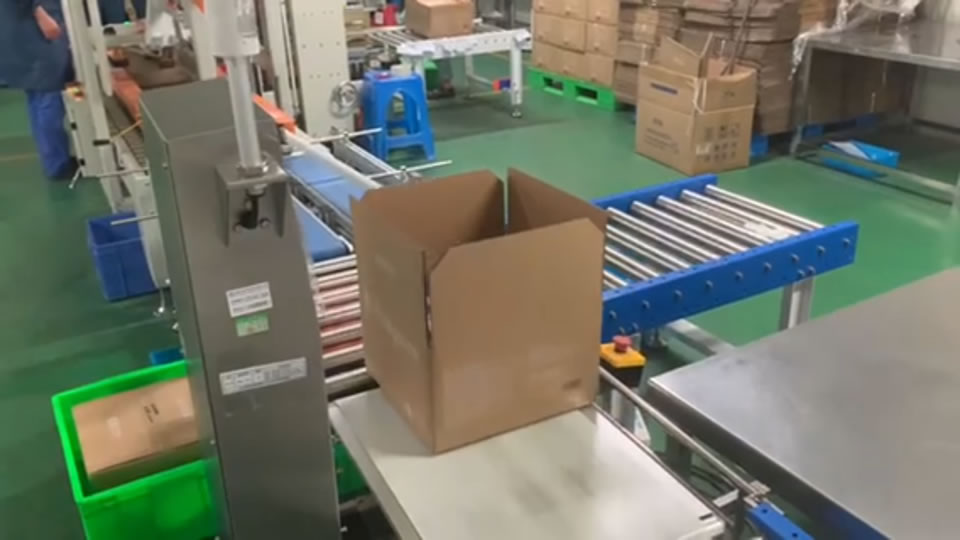

Automatic case opener: High speed horizontal type case opener, maximum speed 30 cases/min, case size range: L240-450mm, W170-380mm, H230-360mm (speed related to the sizes)

Twisting conveyor: Can twist packages, max 120 pkgs/min

Collation conveyor: Synchronous collating in, flat or twisting packing method, max speed 120pkgs/min

Pusher robot arm: Synchronous push out wet wipes for case packing, 25-40 times/min

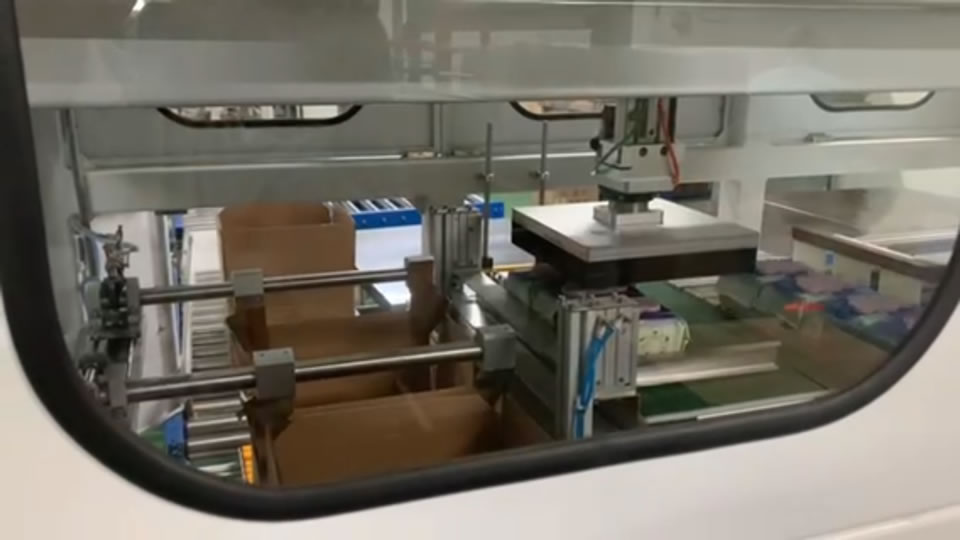

Case packing robot arm: Three-axis robot arm, pick-up speed 25-40 times/min

Straight line auto case sealer: Flap folding and sealing, speed 1-20M/min

Case packing method: Single row: 2-6pkgs (Horizontal or twisting packing), Double rows: 2x(2-6)pkgs (Horizontal or twisting packing)

Occupied area: L3500mm, W2300mm, H2000mm

Rated power: AC380V, 50/60HZ, three-phase five-wire system, 11KW

Compressed air 0.6-0.8Mpa, 100L/min

Net weight: 1500KG

Other optional equipments: I-type automatic case sealer, sealing detector, full case checkerweigher, bad sealing shortweight and overweight rejection
