Equipment Features

Full-automatic robot arm palletizer with its characterized structure and performance to realize high speed picking up and putting motion. It will complete a full-automatic production line without labor. Pallets magazine output empty pallets automatically. Palletizer can connect with 1-3 sets case packer, sort and stack to pallets automatically (according to robot model), Automatic shrink wrapping after palletizing (optional device).

Technical Parameters

Machine model: RS-PC660

Robot model: 660

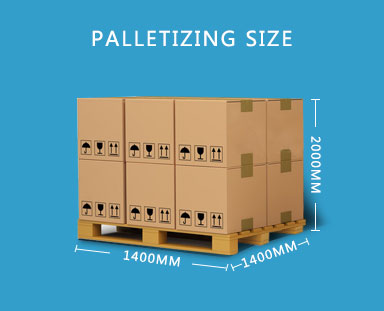

Palletizing height: Maximum 2.0m

Working Diameter: Maximum 6.6m (according to palletizing height)

Palletizing length: Maximum 1.4m

Palletizing width: Maximum 1.4m

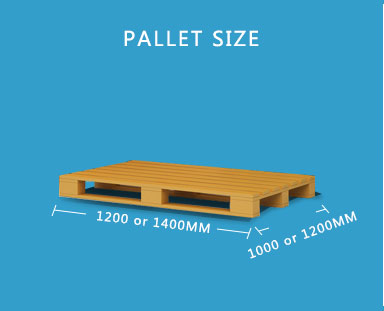

Recommended pallet size: 1200x1000mm, 1400x1200mm

Connect with case packer Q'ty: Maximum 3 sets

Speed of palletizing: Maximum 15 times/min

Empty pallet storage: 8 pallets

Rated power: AC380V, 50/60Hz, three-phase five-wire, 6KW

Compressed air: 0.6-0.8Mpa，100L/min

Other optional devices: Shrink wrapping machine, working guard-rail
