Equipment Features

Full-automatic case packer can realize high speed picking up and putting motion. It will complete a full-automatic production line and no need labor case packing. Autocomplete in line case unpacking, case filling, case sealing. Intelligent online removal function. Intelligent automatic divide and automatic counting system. On line case sealing detection function.

Technical Parameters

Machine model：RS-CP40

Robot arm：Four-axis manipulator

Empty case storage：60-100 cases (1000mm)

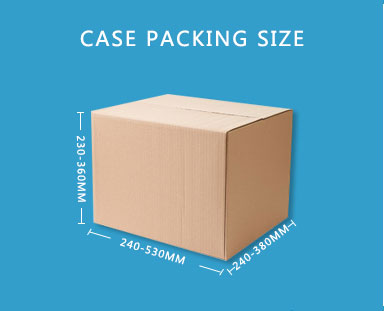

Case packing size：L240-530mm, W240-380mm, H230-360mm

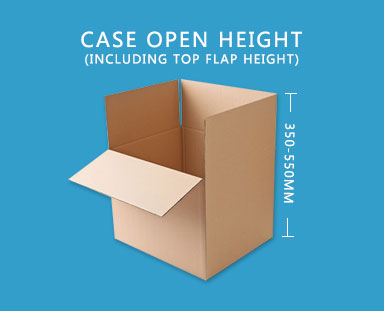

Open case height：H350-550mm (including top flap height)

Case packing type：2 lanes distribute, 2-4 pkgs per time

Case packing speed：Maximum 40 times/min (according to case packing type)

Applied tape width：48mm，60mm，75mm

Rated power：AC380V, 50/60Hz, three-phase five-wire, 8KW

Compressed air：0.6-0.8Mpa，100L/min

Other optional devices：Case sealing detection, full case checkweigher, not sealed case short weight and overweight auto reject
