| Full-automatic robot arm lid applicator is a perfect combination of industrial manipulator and machine visual technology. Industrial manipulator with its characterized structure and performance to realize high speed picking up and putting motion. Machine vision system can break the constraints of work environment, working hours, production rate and else. It can realize rapid detection of objects shape, size, pattern and their relative position. Visual system can do online monitoring and recognize the position of sticking label on wet wipes package then measuring position and angle. Robot arm can complete grab lid, spray glue, put lid with high speed in place of labour and repetitive work and apply to various lid shape. It allows user to reduce the amount of labor, improve production efficiency, accuracy and product quality. |

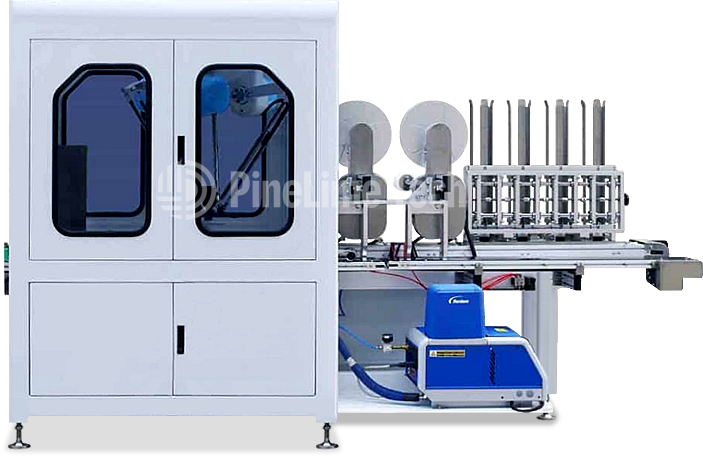

| Machine model: RS-LA110 |
| Robot arm: ABB |
| Capping accuracy: Horizontal direction: ±1.5mm, vertical direction: ±1mm (according to lid shape) |
| Labelling accuracy: Horizontal direction: ±1mm, vertical direction: ±1mm |
| Wet wipe package height: Maximum 110mm (otherwise indicated) |

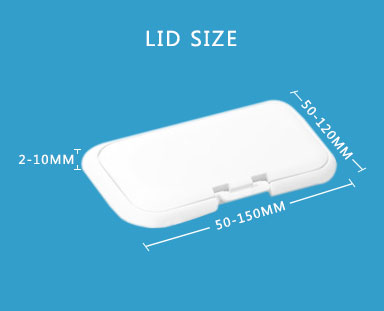

| Applied lid size: L50-150mm, W50-120mm, H2-10mm |
| Applied sticking label: L30-100mm, W30-100mm |
| Suction cup Q'ty: 1 OR 2 |
| Glue gun Q'ty: 1 OR 2 |

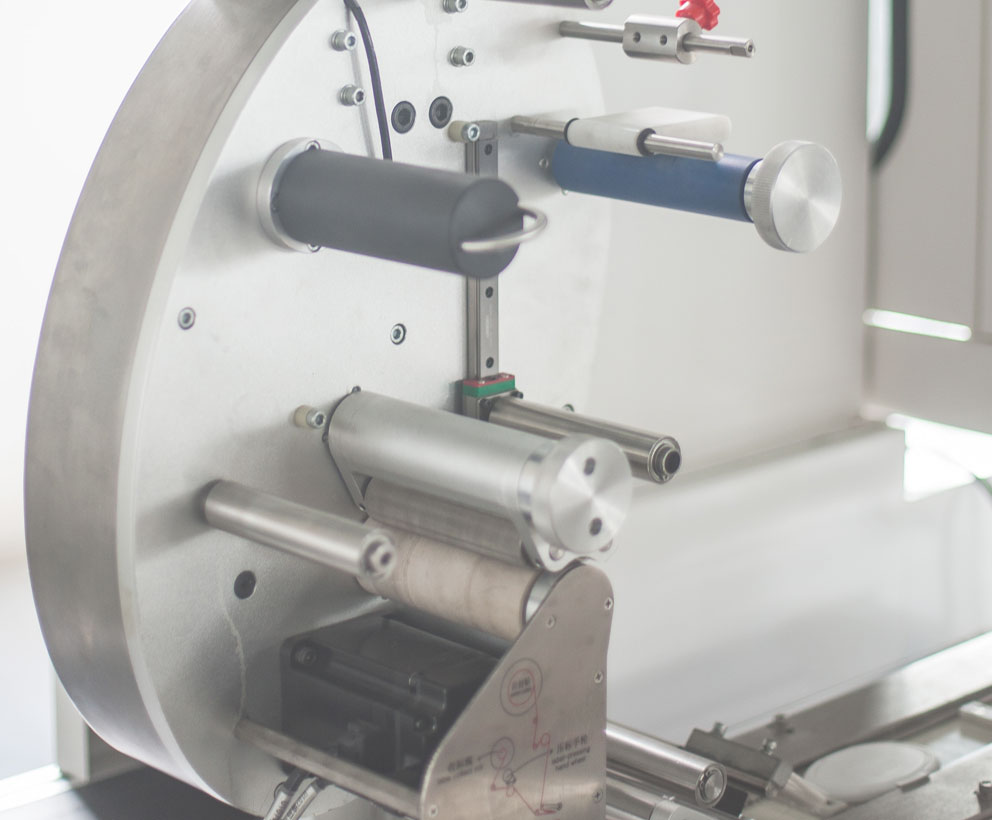

| Label applicator Q'ty: 2 (auto switch) |
| Production speed: Maximum 75 pcs/min (according to lid shape) OR Maximum 100 pcs/min (according to lid shape) |
| External dimension: L4100mm，W1300mm，H2630mm: L4100mm，W3250mm，H2630mm |
| Rated power: AC380V, 50/60Hz, three-phase five-wire, 10KW |
| Compressed air: 0.6-0.8Mpa，100L/min |
| Weight: About 2300KGS |
| Other optional devices: Capping effect visual check & auto reject |
