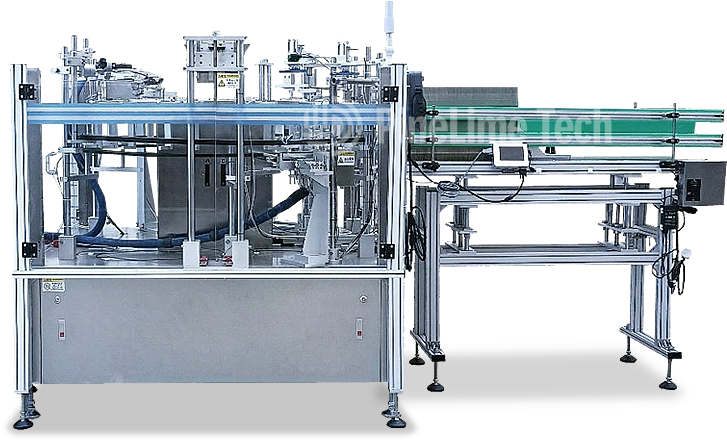

PLT-CA01 CARTONING MACHINE SET


Equipment Features

The Cartoning system will arrange the FFP2 Mask 50pieces in one group and put into inner box.

Technical Parameters

Production speed: 20-30 boxes/min
Paper box's largest size: 350 x 200x 200mm
Paper box's smallest size: 120 x 80 x 80 mm
Paper quality of carton: 250-350g/m3
Motor horsepower: 1/4HP 15:1,1.5KW/H
Power supply: 220V 50/60HZ
Machine noise: ≤80dB
Gas source: 0.5-0.8 Mpa
Compress air consumption: 200L/min
Machine measurement: L 1900 x W 1500 x H 1700 mm
Machine weight: 850Kg
